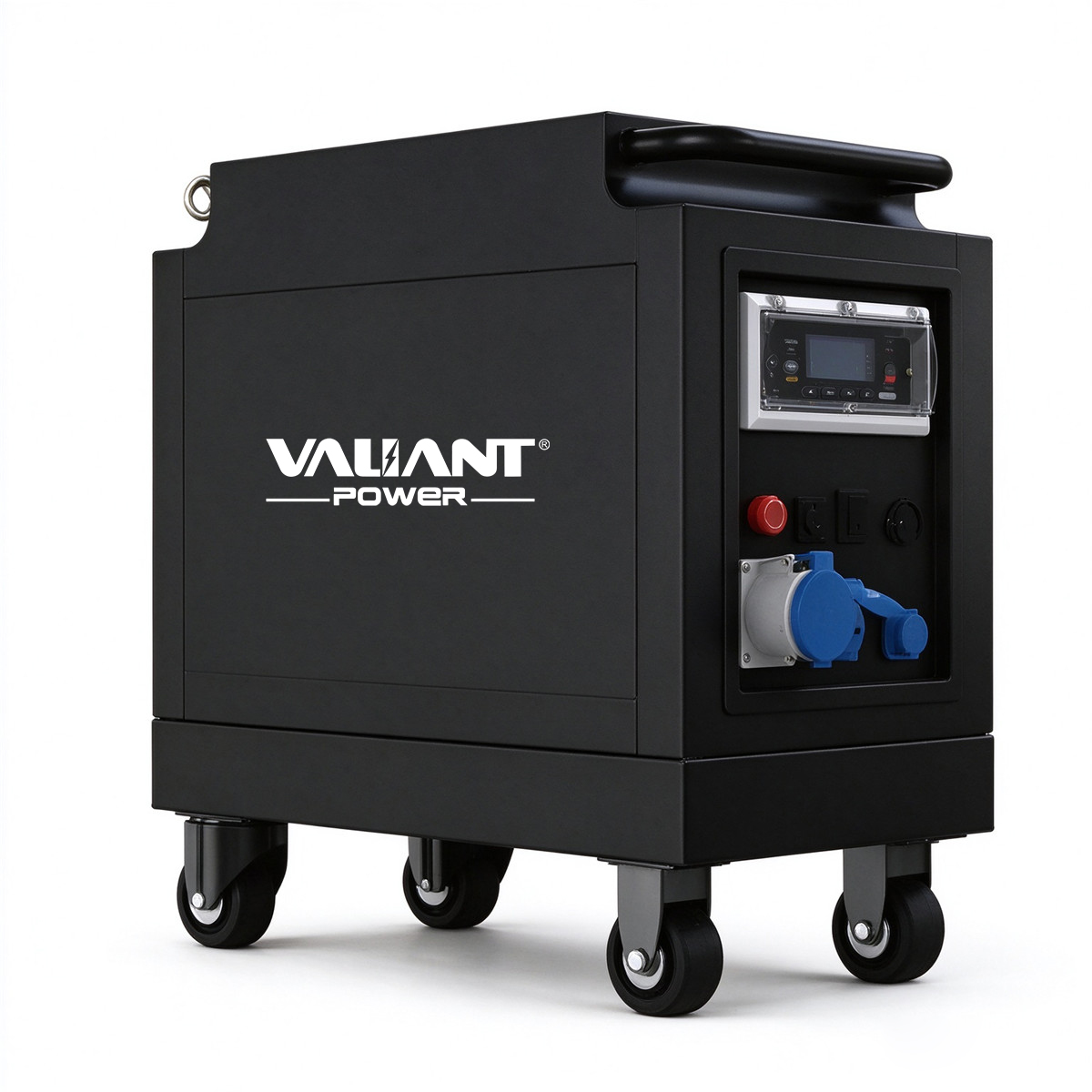

MP05K-12

CORE FEATURES:

01 Inverter Performance

     5000W rated pure sine-wave AC output with 10kW/3s surge capacity,single-phase 220/230v 50/60Hz and peak 94% efficiency. It runs heavyinductive loads such as air conditioners, water pumps and kitchenappliances with built-in UPSseamless transfer; maxdischarge currentreaches 200A for strong load capacity.

02 High-Power MPPT Solar Charging

     Integrated high-efficiency MPPT controller supports up to 8800W PV input(>99.5% efficiency), PV operating range 65~245V and max open-circuit voltage250V for large solar arrays. Max charging currentl15A,dual charging viasolar +grid AC.

03 High-Voltage LiFePO4 Storage (51.2V)

     Max 11.776kWh capacity;>6000 charge cycles, 10-year design life &10-yearwarranty (>80% residual capacity). Wide temperature range: -10~65C forcharging/ -20~65°C for discharging, certified to IEC EU standards for extremecold & hot regions.

APPLICABLE SCENARIOS:

01 Off-grid PV for rural houses

02 Residential peak-shaving & home backup

03 Small commercial backup storage

04 Outdoor construction

PARAMETER:

SAFE &RELIABLE

Multi-protection for peace of mind

FLEXIBLE EXPANSION

Scalable capacity to meet your needs

GLOBAL COMPATIBILITY

Certified standards for global deploymentace
